Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 3000--4500 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 1 month
Payment Terms: T/T
Supply Ability: 50 sets per month
Name: |

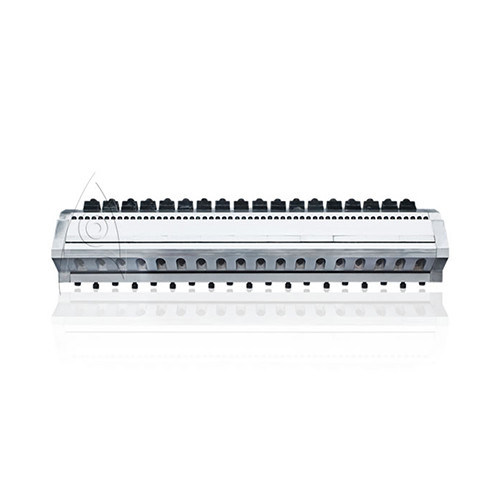

PP/PE/EVA Plastics T-die Mould |
Mould Width: |
In General,width Is From To (could Be Customized) |
Runner: |
Coated Hanger Flow Channel |
Shape Mould: |
Extrusion Mould |
Adopts Die Steel: |
50CrNiMo,Germany2738,4140,P30,P20 Or 38CRMOAL,B30H |
Heater Element: |
Stainless Steel Heating Rod |
Precision Of Polishing: |
Polishing Precision Of The Stream Surface Of The Die Lip 0.03-0.04(um)other Parts Is 0.04-0.05(um) |
After-sales Service: |
Rovided: Engineers Available To Service Machinery Overseas |
Galvanization: |
The Stream Surface Of The Die Head Are Treated By Chrome Treatment. Thickness0.02-0.03mm; Hardness: 60-65Rockwellc; The Chrome Treatment Thickness Of The Ektexine Is 0.01-0.02mm. |
Product Name: |
Plastic Extrusion Mould |
Name: |
PP/PE/EVA Plastics T-die Mould |
Mould Width: |
In General,width Is From To (could Be Customized) |
Runner: |
Coated Hanger Flow Channel |
Shape Mould: |
Extrusion Mould |
Adopts Die Steel: |
50CrNiMo,Germany2738,4140,P30,P20 Or 38CRMOAL,B30H |
Heater Element: |
Stainless Steel Heating Rod |
Precision Of Polishing: |
Polishing Precision Of The Stream Surface Of The Die Lip 0.03-0.04(um)other Parts Is 0.04-0.05(um) |
After-sales Service: |
Rovided: Engineers Available To Service Machinery Overseas |
Galvanization: |
The Stream Surface Of The Die Head Are Treated By Chrome Treatment. Thickness0.02-0.03mm; Hardness: 60-65Rockwellc; The Chrome Treatment Thickness Of The Ektexine Is 0.01-0.02mm. |
Product Name: |
Plastic Extrusion Mould |
Modularized distributor Special single flow channel die head Multi materials co-Extrusion, such as PP, PE, PS and so on.
can produce the film or sheet thickness 0.005-0.1mm.
Die head standard width :1100-500mm adjustable
1300-600mm adjustable
1500-800mm adjustable
1700-1000mm adjustable
* with the elimination of thick inside edge of the blocking device functions.
* thickness range of products:0.005-0.1mm arbitray adjustment
* die heating:district heating stainless steel heating rods or cast plate heating zones
* lip-wide push mode to fine tune the structure
* products accuracy within 2%
Product name | plastic extrusion mould | |
Mould width | In general,width is from to (could be customized) | |
Product width | According to clients’ demand | |
Die orifice adjusting mode | Sensitive die lip adjustment via Push or Pull bolt | |
Voltage | 220V, 50HZ (Could be ordered by your request) | |
Driving power | within 5KW | |
Mode of connection | closed cycled connection | |
Adopts die steel | 50CrNiMo,Germany2738,4140,P30,P20 or 38CRMOAL,B30H, | |
Heater element | Stainless steel heating rod | |
Fastening piece (screw) | 12.9. High strength | |
Precision of polishing | Polishing precision of the stream surface of the die lip 0.03-0.04(um)other parts is 0.04-0.05(um) | |
Galvanization | the stream surface of the die head are treated by chrome treatment. Thickness0.02-0.03mm; hardness: 60-65Rockwellc; the chrome treatment thickness of the ektexine is 0.01-0.02mm. | |
Other spare parts | Screen changers,feedblocks,melt pump,etc | |
Delivery time | 7days-60days(According to the specific goods) | |
Service after sales | In general for one year,the supplier provide the technology support forever. |
